Engineered solutions for mine sites using 3D scanning technology.

We laser scan worn or problematic mining equipment to perform wear analysis, make design improvements and ensure fast and reliable quality checks.

We laser scan objects and environments of all sizes to produce a ‘point cloud’. This can be done on site or at our workshop in Perth, Western Australia depending on the size of the object.

We send the CAD model to one of our advanced manufacturing facilities depending on the materials required. All manufactured items undergo extensive quality assurance checks.

An engineeer uses the point cloud to develop a CAD model and compares this with the original scanned data to identify where design improvements can be made.

3D Asset Management

The scanned data and new CAD model is used to create measurable 3D flythroughs, visual asset, training and document hotspots.

Laser scanning

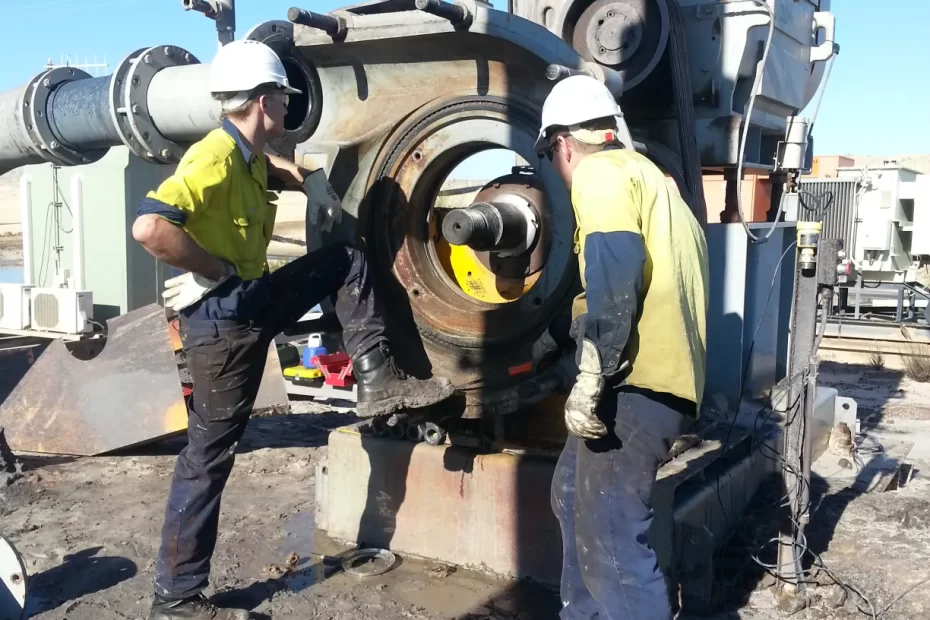

We laser scan all sizes of mining equipment from bearing housings and pump parts, through to entire refineries.

Common examples: Bearing housings, cylinder heads, small gears

Typical tolerances: 0.02mm

Common examples: Wear Liners, Apron Feeders, Pump Parts, Cyclones

Typical tolerances: 0.1mm

Common examples: Sticks, Mill Girth Gears, Wheel Motors

Typical tolerances: 2mm Scan with Chosen Points to 0.02mm Geo. Tols.

Common examples: entire refineries

Typical tolerances: 2mm

Using models for manufacture

We use rapid prototyping, advanced high quality manufacturing and rapid offshore QA verification to ensure machinery is built to the highest of standards.

Benefit from the wear analysis of common brands

Access our group company's models to produce wear maps for slurry pumps and mining wear products.

Case Studies

Wear analysis to extend life of coal chute liners

In conjunction with the customer, 7D Team developed the process, procedure and methodology to provide continuous wear monitoring statistical data that could be used to asses and predict wear characteristics, with a view to prolonging the life of the chute liners.

Read More »
New and improved super duplex pump

Reverse Engineering a Seawater Lift Pump

Case Study: Sea Water Lift Pump Overview 2 stage bronze pump Diameter 600mm Original condition lasting 6 to 12 months Redevelopment scope Provide alternative supply with local support Match motor maintenance schedule of 4 years

Read More »

7D Team specialise in design engineering for the mining and mineral industry. Our team offer a unique and highly advanced service, using spatial and measurement technology to digitise existing products.

Our mission

To maximise returns for mining and oil and gas sites through the use of innovative engineered solutions.
